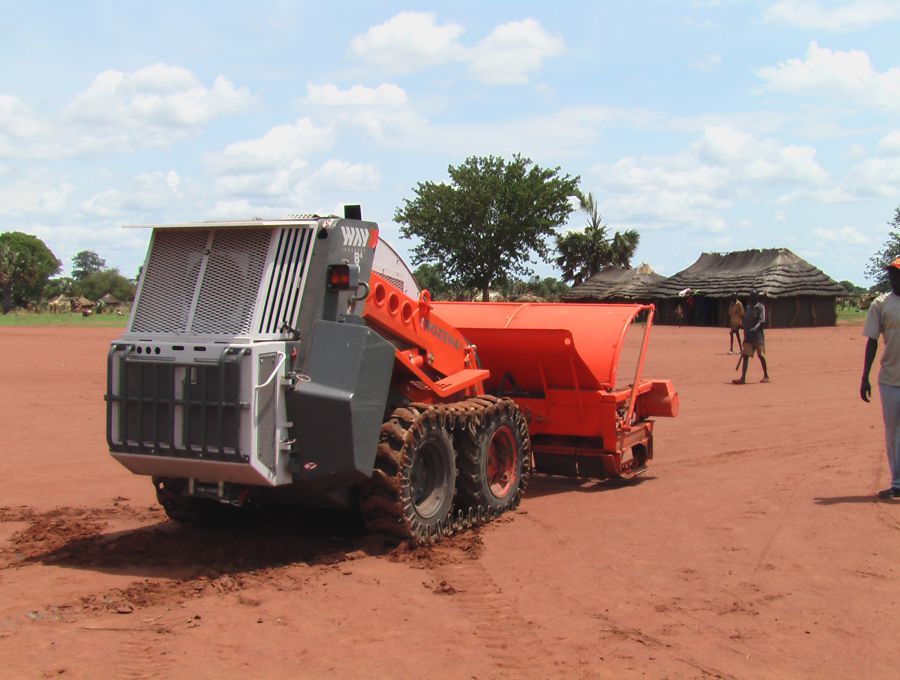

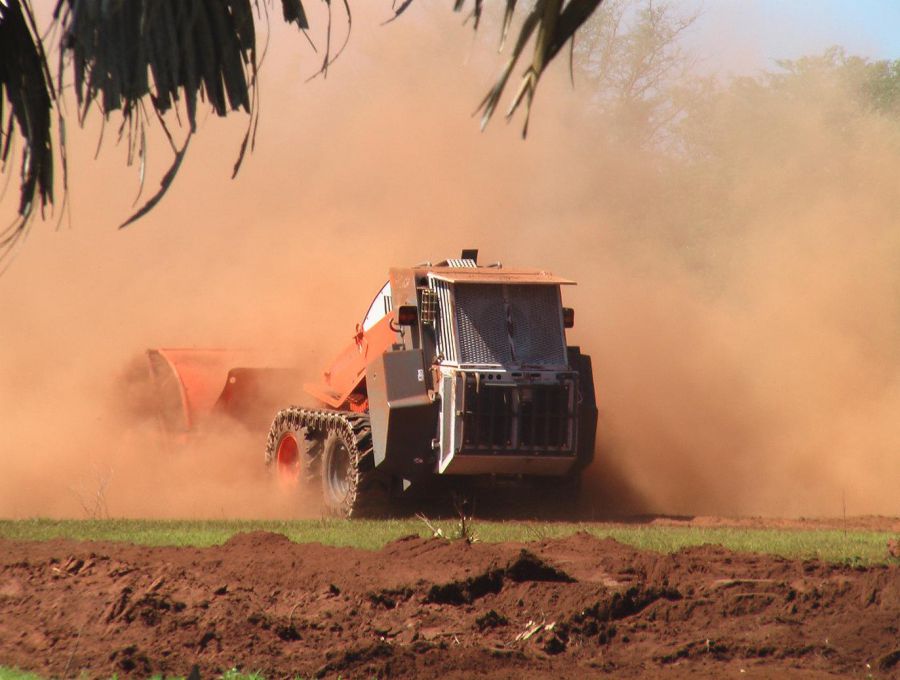

BOZENA 4
BOZENA 4 is a remotely controlled light demining system designed for mine clearance and for C-IED tasks assistance. Its size and weight allow BOZENA 4 to work in space limited conditions (inside forests and mountains, along plantations and obstacles).
Due to its exceptional resistance against anti-tank mines (9 kg TNT) BOZENA 4 can be used in zones with high-threat contamination. There is a wide range of accessories and attachments available to enlarge the efficiency in field operations.
BOZENA systems successfully deal with any demining challenge worldwide and as the real tool for the real job have enjoyed the trust and satisfaction of end-user for more than 15 years.
| Length total | 5 280 mm |
| Length of Prime mover | 3 305 mm |
| Length of Flail unit | 2 000 mm |
| Width of Prime mover with tracks | 1 985 mm |
| Width of Flail unit | 2 840 mm |
| Height of Prime mover | 2 270 mm |
| Weight total | 6 983 kg |
| Weight of Prime mover | 5 576 kg |
| Weight of Flail unit | 1 407 kg |
| Engine | DEUTZ BF 6L914, turbo |
| Rated power at 2 500 RPM | 110 kW (147 HP) |
| Torque at 1 600 RPM | 550 Nm |
| Fuel consumption – average/max | 13,2 / 19,5 l/h |
| Mine clearance width | 2,2 m |
| Mine clearance depth | max 250 mm |
| Blast resistance | 9 kg TNT |
| Operating RPM of the Flail unit | 350 – 500 |
| Working efficiency (max) | 2 500 sq m/hour |
| Vegetation cutting – diameter/height | up to 30 cm / 4 m |
| Fuel tank capacity | 140 l |
| Maximum speed | 9 km/h |
| Remote control – range/battery life | 5 000 m/11 hrs |
